How Setra Particle Counters Support Precision and Safety in Lithium-Ion Battery Production


July 10, 2025

The global push for electric vehicles (EVs) has placed lithium-ion battery manufacturing under intense scrutiny for quality, consistency, and safety. At the heart of this process lies one critical factor often invisible to the naked eye: particulate contamination.

Lithium-Battery-Particle-Count

Microscopic particles can jeopardize battery integrity, lead to costly failures, or create dangerous safety risks such as fires or explosions. To combat these threats, battery manufacturers rely on highly controlled cleanroom environments.





Why are Cleanrooms Critical for EV Battery Manufacturing?

In general, cleanrooms are areas where parameters such as airborne particle levels, air pressure differentials, temperature and humidity, and airflow patterns and filtration are highly controlled and monitored.

In EV manufacturing plants, cleanrooms are typically used for electrode coating, cell assembly, and packaging, all of which are delicate, high-stakes processes.

Even the small particles matter.

During production, tiny metal particles like iron, nickel, or copper can become suspended in the battery’s flammable electrode. If they breach the separator, they may trigger short circuits, leading to thermal runaway, fires, or severe damage. Other contaminants reaching the electrolyte can cause chemical reactions that degrade battery capacity and efficiency.

Lithium-ion battery separators are typically just 10–30 microns thick, so even 1–5 micron conductive particles, like iron, nickel, or copper, can bridge the gap between electrodes and pose a serious risk.

Why Particle Counting is Essential

Prevention and Monitoring

Contaminants such as metal particles and dust can originate from machinery wear, tools, packaging materials, or even personnel.

Lithium-ion battery manufacturers can take several key precautions to maintain a controlled environment. These include clearly separating high and low cleanliness zones, maintaining positive air pressure, using HEPA filtration to remove airborne particles, and employing desiccant systems to control humidity.

Contamination control, however, is only as effective as the monitoring tools in place. Automated, real-time particle counting allows manufacturers to:

  • - Verify compliance with ISO cleanroom classifications (see below) and other regulatory requirements
  • - Detect particle sources before they compromise production
  • - Maintain consistent product quality
  • - Ensure the safety and reliability of battery products

Typical Cleanroom Classifications for Battery Manufacturing

Cleanrooms for lithium battery production follow strict guidelines, often based on ISO 14644-1, which classifies spaces by the concentration of airborne particles per cubic meter.

ISO Class 5 or 6: Required for critical cell manufacturing processes such as mixing, coating, drying, and slitting, where foreign particles can directly affect battery performance and safety.

ISO Class 7 or 8: Common for module or pack assembly, where larger components and slightly lower cleanliness levels may be acceptable.

Remember, maintaining high-performance battery production spaces requires more than equipment; it demands thoughtful design, robust processes, and vigilant monitoring.

How Setra Supports Regulatory Compliance and Quality Assurance

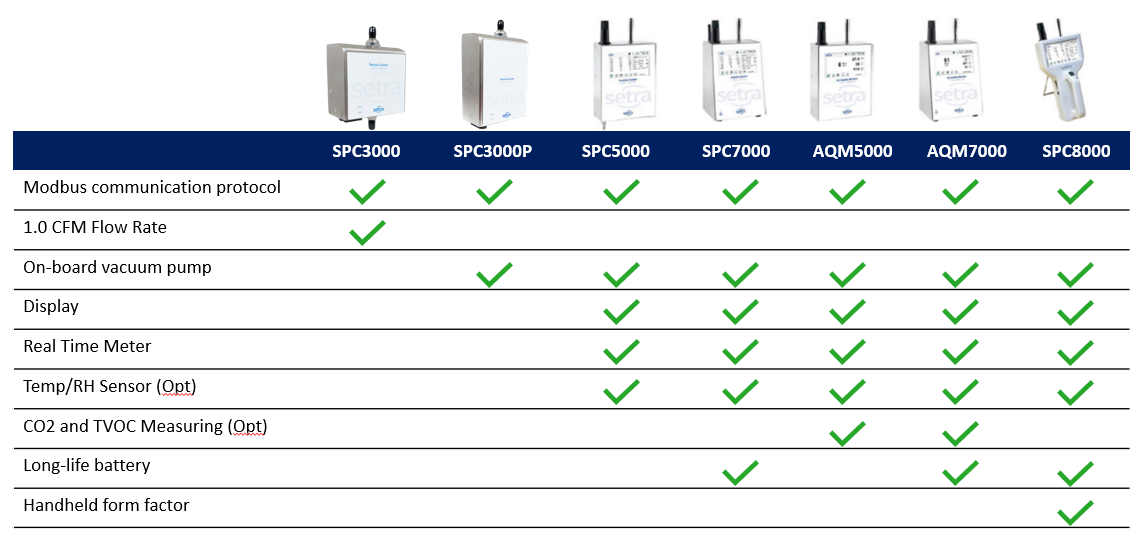

PC comparison table



Regulatory-Grade Accuracy: Compliant with ISO 21501-4 and JIS B9921, Setra counters meet the calibration and performance standards required for cleanrooms classified under ISO 14644-1.

Targeted Particle Detection: Measures particles from 0.3 µm to 25 µm, covering the critical 0.5–10 µm range where metal contaminants like iron, nickel, and copper are most dangerous.

Flexible Deployment Options: Available in handheld, benchtop, wall-mounted, and portable models that integrate into broader environmental monitoring systems (EMS) to fit any cleanroom layout or workflow.

Comprehensive Data Logging: Stores up to 45,000 time-stamped samples with real-time alerts, supporting traceability, audits, and proactive contamination control.

Supporting Safer, More Reliable Batteries

Cleanrooms are the foundation of safe, reliable lithium-ion battery production. However, these spaces are only as effective as the monitoring solutions they rely on. With Setra Particle Counters, manufacturers gain confidence that their cleanroom environments meet the strict cleanliness standards required to protect products, safeguard workers, and support the global EV supply chain.
