In the fast-paced world of data centers, uptime is everything. Yet, one of the most overlooked threats to server reliability and equipment longevity is also one of the smallest—airborne particulate contamination. Dust, dirt, and microscopic particles can silently degrade performance, disrupt airflow, interfere with circuit boards, and even void equipment warranties. This is where Setra’s advanced particle counters come into play, helping data center operators meet air cleanliness standards, reduce downtime, and maintain the reliability their clients expect.
Contamination Control: A Hidden Risk to Uptime
Contamination is responsible for more IT downtime than natural disasters and human error combined. Constant airflow, necessary for dissipating heat in servers and switchgear, acts as a transport mechanism for particulate matter—dust, combustion particles, even corrosion-inducing residues—that can settle inside mission-critical equipment. The result? Hard-to-diagnose system failures and potential data loss.
Because of this risk, data centers are increasingly adopting controlled environment standards for air cleanliness. Leading this effort is the international benchmark for cleanroom classification: ISO 14644-1.
Understanding ISO 14644-1 Class 8 for Data Centers
ISO 14644-1:2015 sets the global standard for air cleanliness in controlled environments, defining cleanliness classes by particle concentration per cubic meter. For data centers, the Class 8 level is widely accepted as best practice for Data Halls, Server Rooms, Communication Rooms, MERs, and SERs.
To meet Class 8 requirements, the air in a space must not exceed:
- 3,520,000 particles ≥ 0.5 µm per cubic meter
This “5 Micron Clean” benchmark is critical not only for performance but also for compliance. Top-tier IT hardware manufacturers like Cisco, Oracle, and Sun often require Class 8 cleanliness as a warranty condition. If particle contamination causes equipment failure and the space isn’t certified to ISO standards, the repair costs may fall outside warranty coverage.
Achieving Compliance: Filtration + Monitoring
While filtration systems—such as MERV 8, 11, or 13 filters—are a starting point, they’re not enough on their own. According to ASHRAE recommendations, facilities using air-side economizers may introduce outdoor particulates, requiring even higher-grade filtration and regular cleaning. Routine professional cleaning is essential to maintain ISO Class 8 cleanliness, even with proper HVAC and filtration infrastructure. Real-time monitoring of filter performance is also essential to maintaining ISO Class 8 air quality, especially in dynamic environments like data centers. Products like Setra’s Filter Alert™ provide early warning of filter degradation or pressure drops, ensuring timely maintenance and consistent air cleanliness.
Validation and certification are critical, and that’s where Setra Particle Counters make the difference.
Explore our other data center solutions >>
Setra Particle Counters: Precision Tools for Clean Air Monitoring
Setra’s SPC5000, SPC7000, and SPC8000 Series particle counters provide the real-time data and reporting necessary for ISO 14644-1 compliance.
Key Features:
- Particle Size Ranges: 0.3 µm to 25 µm.
- Flow Rate: 0.1 CFM (2.83 LPM), optimized for cleanroom and controlled environments.
- Channel Display: Up to six user-selectable particle size channels.
- Mass Concentration Approximation: Reportable in µg/m³.
These instruments comply with ISO 21501-4 and JIS B9921, ensuring the data you collect meets ISO’s standards for air cleanliness classification. Setra’s devices are ideal for performing ISO 14644-3 particulate surveys, enabling facilities to issue certificates of conformity for audits and OEM warranty documentation.
Flexible Form Factors for Any Monitoring Need

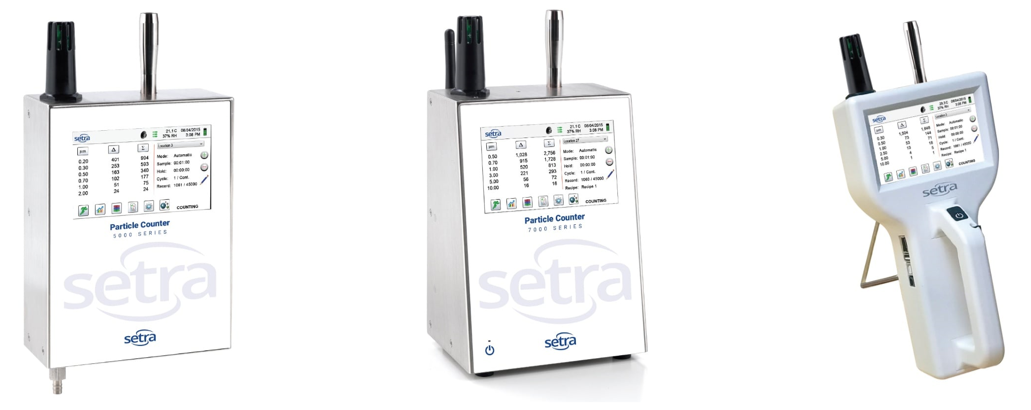

Setra offers a range of particle counters tailored for different deployment scenarios:
- SPC5000: Remote monitoring with benchtop or wall-mount options.
- SPC7000: Battery-powered option available for mobile or backup operation.
- SPC8000: Handheld portable unit with real-time particle tracking—ideal for identifying contamination hotspots.
All models feature intuitive color touchscreens, data logging up to 45,000 samples, and multiple connectivity options: Ethernet, USB, optional wireless, RS485, and RS232. Integration with building automation or cleanroom monitoring systems is seamless, and remote browser-based access is supported.
The Setra Advantage: Empowering Contamination Control
Setra particle counters do more than measure—they empower data center operators, facility managers, and third-party cleaning contractors to:
- Validate ISO 14644-1 Class 8 compliance.
- Detect and respond to contamination events.
- Maintain warranty-eligible environments for OEM hardware.
- Protect against costly downtime and equipment failure.
- Support internal and external audit readiness.
With advanced reporting, user-friendly interfaces, and robust integration capabilities, Setra delivers the clarity and confidence required to manage air cleanliness in today’s data centers.
Final Word
Airborne contamination may be invisible, but its impact is real…and costly. In the high-stakes world of data center operations, clean air is critical infrastructure. Setra’s suite of ISO-compliant particle counters ensures your facility stays ahead of the curve, minimizing risks and maximizing uptime.
Ready to meet ISO 14644-1 Class 8 standards?
Explore Setra’s particle counter solutions and take control of your data center environment.
