What is the difference between NEMA and IP ratings?

What is the difference between NEMA and IP Ratings?

In manufacturing, there are two standards used to measure the different grades of electrical enclosures and how resistant they are to the ingress of certain materials. NEMA ratings and IP ratings both define degrees of protection against substances such as water and dust, but use different test methods and parameters to define their enclosure types (NEMA 250 and IEC standard 60529).

The acronym “NEMA” refers to the National Electrical Manufacturers Association, a trade association whose membership is comprised of electrical equipment manufacturers in the United States. In addition to being an industry advocacy group, NEMA is known best for its standards, of which they have published over 600. These include not only enclosure integrity but also electrical connections. They are responsible for the design standardization of the ubiquitous two and three-pronged wall plugs common in North America.

For example, a device with a NEMA 4 rated enclosure must provide a degree of protection against the following:

  • Access to hazardous parts
  • Ingress of solid foreign objects (e.g. falling dirt, circulating dust, lint, fibers, etc.)
  • Ingress of water from splashing water or a hose-down.

IP ratings are a part of the International Electrotechnical Commission (IEC), a non-governmental international standards agency based in Geneva, Switzerland. “IP” stands for “international protection” but is commonly referred to as “ingress protection.” There are dozens of IP standards, but some of the most common ones are:

  • IP54 - “limited dust tight” and protected against water spray in any direction
  • IP65 - "dust tight" and protected against water projected from a nozzle
  • IP67 - "dust tight" and protected against immersion between 15cm and 1 meter in depth
  • IP68 - "dust tight" and protected against immersion.

NEMA is geared towards industrial applications and is primarily used in North America, whereas IP ratings cover a broad set of applications worldwide. IP ratings cover protection only against the ingress of water and solid objects while NEMA includes supplementary protection standards against corrosion resistance and atmospheric gasses (such as acetylene or gasoline). NEMA ratings also include distinctions between hazardous and non-hazardous environments.

There is no direct conversion between NEMA and IP ratings. NEMA standards meet or exceed the IP Ratings listed. However, IP ratings do not necessarily meet NEMA standards, since NEMA includes additional product features and tests not addressed by the IP rating system. For example, NEMA requires functionality under icing conditions and testing for environmental hazards such as corrosion and oil, whereas IP standards do not. Although the ratings are not directly equivalent, they can be compared as shown in the table below.

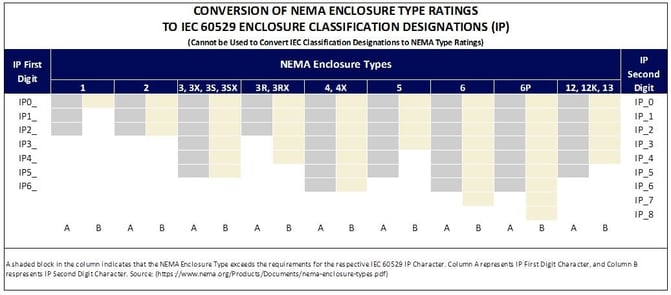

Conversion of NEMA enclosure type ratings to IP Ratings

 Source:
https://www.nema.org/Products/Documents/nema-enclosure-types.pdf

CLICK HERE to learn how to interpret an IP rating Chart.
