Power Meters and Energy Submetering Solutions

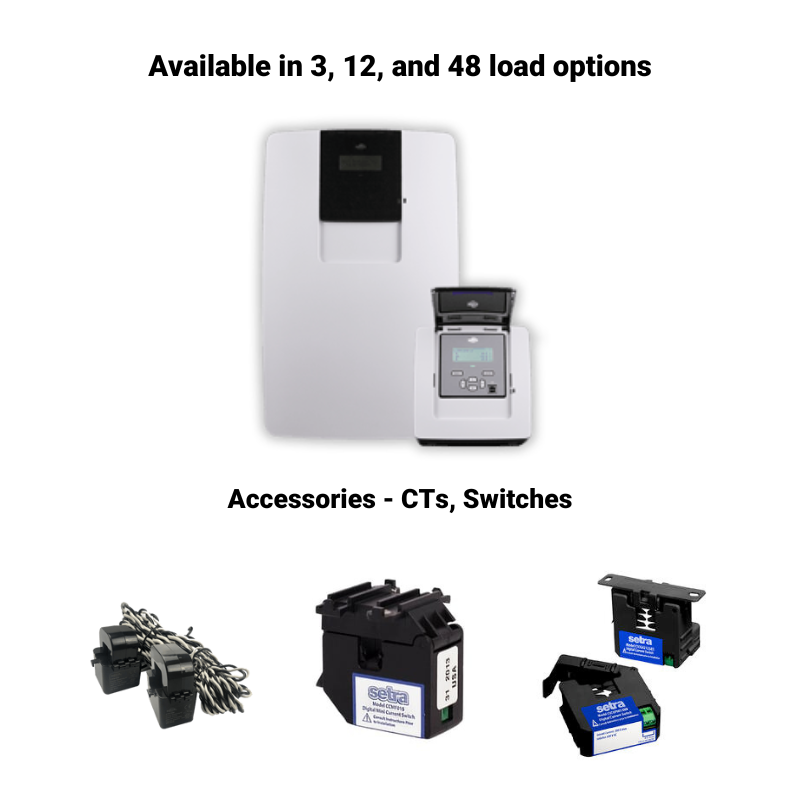

Meet the future of Power Metering. Setra has raised the bar with one of the easiest to use and most advanced Power Meters on the planet. Designed to save time and money, Setra's Power Meter will be available in 3, 12, and 48 load options.

Our Power Meters are designed to monitor energy usage. In industrial settings, power meters are used to measure the power usage of machinery, lighting, appliances, and even entire buildings. This data can be used to reduce energy usage and save on electricity bills. Manufacturers use power meters to help determine when a machine is malfunctioning or wearing out. Revenue Grade Power Meters are utilized in residential or commercial buildings to bill tenants individually for energy use.

Setra Power Meter

  • SETRA Power Meter

Submit the details below to Contact Us & Technical Details


Overview

The Power Meter from Setra is a networked revenue grade power meter built on a versatile and powerful platform designed to meet the high demands for any submetering application. Available in a 3, 12 or 48 load configurations, the meter enclosure & intuitive web portal interface significantly reduce installation time and cost per metering point.

Features
  • Monitor 3, 12, or 48 loads on any combination of single and/or three phase systems
  • Monitor voltage, current, power, energy, and many other parameters
    Rotatable display to simplify installation
  • Line-powered, 80-600V phase-to-phase power supply with 200kAIC internal fuse
  • ANSI C12.20-2010 Class 0.2 revenue-grade metering
    UL 94-V0 rated enclosure
  • Can be used on both BACnet and Modbus protocols and features 2 pulse inputs one pulse output ports, plus serial and Ethernet
  • Use both conventional and Rogowski coil CTs interchangeably

power-meter-badges



Download Datasheet

Benefits
  • Easy installation and configuration
  • Field selectable communication (5 in 1)
  • Multi-load monitoring & data logging
  • Safe access without PPE
Applications
  • Data centers
  • Tenant submetering
  • Bi-directional metering
  • Real-time power metering in commercial, retail, and industrial




Accessories: CTs, Rogo Coils, Current Switches

Patrol Flex Rogowski Coil

  • Patrol-Flex-rogowski-coils

Split-Core Current Transformer (CT)

  • split-core-standard-ct-product

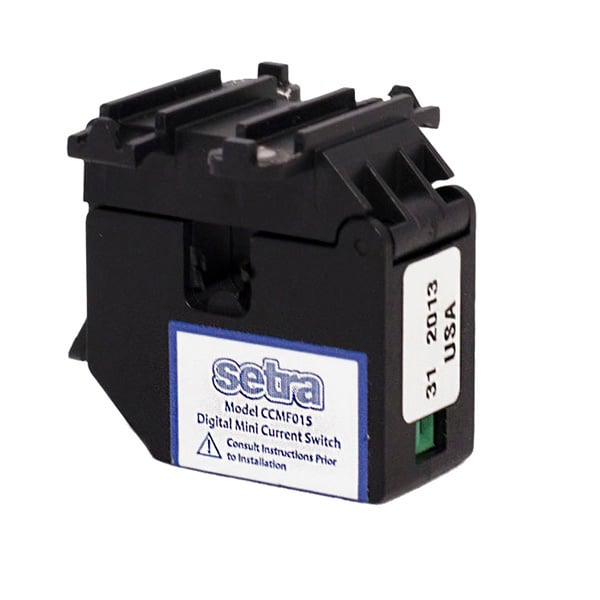

Model CCM Mini Current Switch

  • Model_CCM_NB

Frequently Asked Questions

What is a Power Meter?

Power meters are useful tools for energy management and can help individuals and organizations save money and reduce their environmental impact.

What's the difference between revenue grade and revenue certified? What's the Setra Power Meter?

The Setra Power Meter complies with accuracy class ANSI c12.20 0.2 (which is widely accepted as revenue grade).

However, our meter is not 3rd party certified. Revenue certified would have 3rd party certification; for example, UL, National Testing Services (NTS), Intertek, and others.
